30T Middle Lift Drving Heavy Duty Dump Truck Tipper Truck Equipped Radial Tyre

Name: 30T Middle Lift Drving Heavy Duty Dump Truck Tipper Truck Equipped Radial Tyre
Brand: CIVL
Price: 1 USD

Quality 30T Middle Lift Drving Heavy Duty Dump Truck Tipper Truck Equipped Radial Tyre for sale

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000unitsmonth

Delivery Time : Within 35 days

Packaging Details : nude

material : Q345

Color : black ,red ,yellow ,white ,blue

Logo : optinn

warranty : yes

spare parts : option

Contact Now

Low Price New 6x4 10 Wheels Second Hand Tipper Truck howo Dump Truck zz3317n3567w

Quick Details

Drive Wheel:: 6x4

Capacity (Load):: 21 - 30T

Horsepower:: 351 - 450hp

Condition:: New

Transmission Type:: Manual

Emission Standard:: Euro 2

Fuel Type:: Diesel

Engine Capacity:: > 8L

Gross Vehicle Weight:: 25000

Brand Name:: Sinotruk

Dimensions (L x W x H) (mm):: 8214x2496x3386mm

Type:: howo dump truck zz3317n3567w

Engine:: WD615.47

Tire:: 12.00R20

Transmission:: HW19710

Brand:: Sinotruk HOWO

Cab: HW76

Specification:

Model	ZZ3257N3847C
Gross Weight (Kg)	25000
Curb Weight (Kg)	12420
Engine	Make : Sinotruk Diesel:4-stroke direct injection diesel engine Model:WD615.47 371HP Euro II Emission standard, 6 cylinders in line with water cooling , directly injection Bore x Stoke :126mmx130mm Maximum output: 371HP at 2200rmp Displacement :9.726L Fuel : Diesel
Cabin	HOWO76 cab, single sleeper with air conditioner
Transmission	Model : HW19710 10 forwards and 2 reverse + HW50 PTO
Steering Gear	ZF8118,German ZF Hydraulic Steering with Power Assistance
Clutch	Single Plate 430 diaphragm Spring Clutch
Number of Axle	3
F ront Axle	HF9 Howo Drum Brake front axle Capacity 90000KGS Steering with double T-cross section beam
Driving Axle	HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Ratio:5.73 Loading Capacity: 16000 KGS
Front/Rear Track (mm)	2200/1830
Overhang(front/rear) (mm)	1500/1739
Wheel base (mm)	3825+1350
Max speed(km/h)	78
Maximum gradeability (%)	40
Approach/departure Angle	19/26
Minimum turning circle (m)	20
Fuel Tank	300L
Van Dimension	5400x2300x1500 18.6 CBM Thickness : floor 8MM / Side 6MM Ventral Tipper Hydraulic Lifting
Suspension	Steer Axle : Parabolic spring with shock absorber and stabilizer Drive Axle :Parabolic spring with divided balance shaft and stabilizer
Electric System	Battery :2X12V/165Ah Alternator :28V-1500kw Starter :7.5Kw/24V
Braking System	Service brake:Dual circuit compressed air brake Parking brake:spring energy, compressed air operating on rear wheels Auxiliary brake:Engine exhaust brake
Color	Standard : Red, yellow,Green,White,Blue,Black Optional :As you like
Overall Dimension (L xW xH MM)	8500X2496X3450
Options	ABS, Electrical Tilting Cab

30T Middle Lift Drving Heavy Duty Dump Truck Tipper Truck Equipped Radial Tyre

Product Tags:

commercial box truck

international dump truck

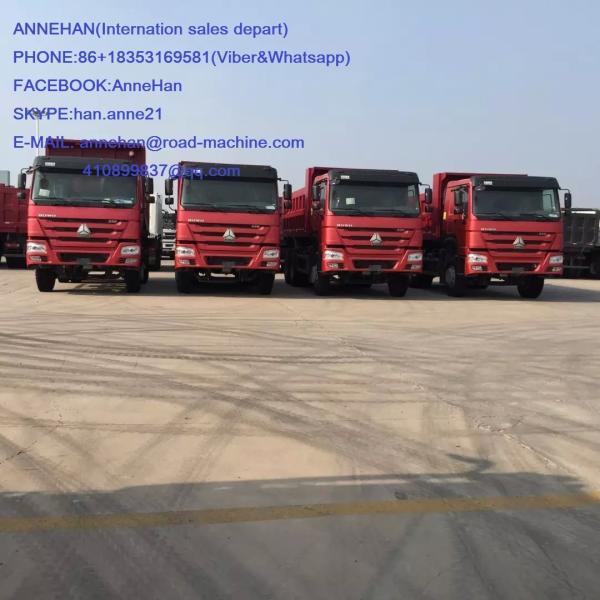

30T Middle Lift Drving Heavy Duty Dump Truck Tipper Truck Equipped Radial Tyre Images
