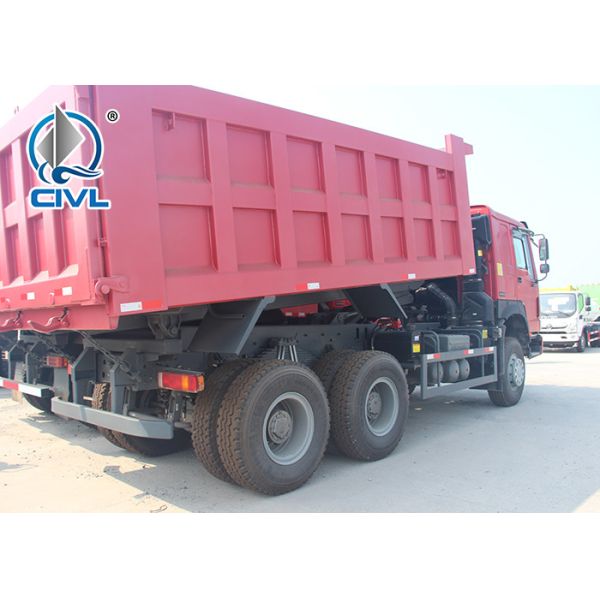

280HP 4 x 4 HOWO Heavy Duty Dump Truck White / Red EURO II 50 Ton
4x4 right drive hand dump truck
(1)the truck adopts sinotruk euroIII series engine which has the world's best technologies energy-saving,environmental protection and high efficiency.the engine is characterized by good reliability,strong power,big torque,low emission,low fuel consumption and low noise.
(2)four-pointed susending cab,saft and comfortable,mature all-wheel drive technology,good off-road performance.
(3)Scope of application:work in oil field,mine ,for firefighter and forest
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
Specifications:
1. howo 4X4 280 hp dumper trucks
2. MAN technologhy
3. large loading capacity
4. large power
HOWO 4X4 280 hp dumper trucks
| Truck Model No: | ZZ3167M4327D1 HW7/280/K43/4x4W |
| | |
| Cab | HW76 cab with one sleeper, with air conditioner |
|
Engine
| Make : SINOTRUK
Diesel: 4-stroke direct injection diesel engine
Engine model : D10.28-40, EUR IV emission , new design on intake & exhaust system, power and fuel economy get improved
6-cylinder in-line with water cooling, turbo-charging and intercooling
Max. output : 280Hp at 1900 rpm
Displacement : 9.726L |
|
Transmission | HW15710C ,10gear transmission SINOTRUK 10 forward & 2
Ratio:14.28
Torque: 1900Nm |
| clutch | SINOTRUK Φ430 C size clutch |
|
Driving Axle
| STR
Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires
Ratio:5.73, 6.72 |
| Front axle | ST16
steel-cast 16T font axle,stick brake |
|
Braking system
| Service brake: dual circuit compressed air brake
Parking brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option:ABS |
| Electrical System | Operating voltage:24V, negative grounded |
| Steering | ZF8098 German Hydraulic steering with powder assistance |
| Wheel & Tyres | 12.00-20
No.of Tyres:10+1 |
| No. of Spring | 10/12 |
| Front/ Rear axles loading capacity (kg) | 7000 /18000 |
| No. of axles | 3 |
| | |
| Van dimension mm | 4500*2300*1800 F style lifting cylinder
Thickness: floor 8mm side 6mm |
Description:
- SINOTRUCK HOWO off-road series trucks own the elegant appearance, strong operation system and excellent safety.
- Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
