Sinotruk HOWO Heavy Duty Dump Truck Twin Countershaft Structure Transmission

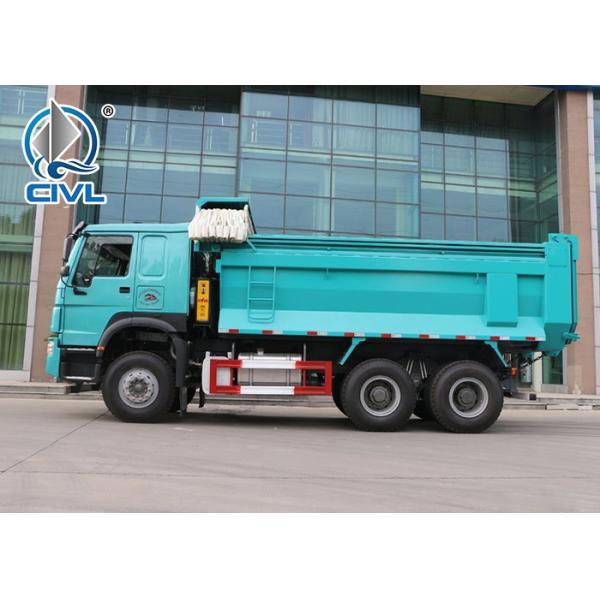

Heavy Duty Dump Truck Description:
HOWO Heavy Duty Dump Truck can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .
HOWO Heavy Duty Dump Truck Drive Axle
The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

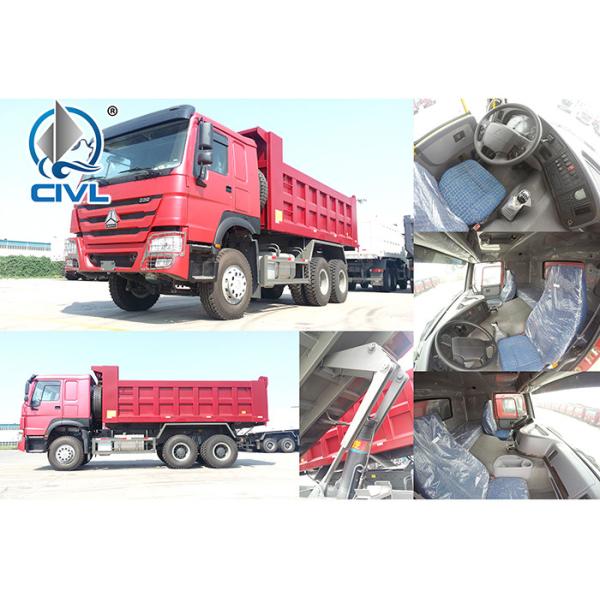

HOWO Heavy Duty Dump Truck Cab
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
HOWO Heavy Duty Dump Truck Specifications:
| Model | HOWO Heavy Duty Dump Truck |
| Cabin | Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt, Adjustable steering, Sunroof, sun cap, single bunk |
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. |
| Model: | 290HP/280kw | WEICHAI engine |
| | Displacement(L): | 9.726liter |
| | Max torque: | 1460NM@1400-1600rpm |
| | Bore/stoke: | 126mm/130mm |
| | Fuel consumption: | <198g /kwh |
| Gear box | American technology | Max torque:1600NM |
| | Model: | HW15710C |
| | Speed: | 15speed, 2reverse |
| Axle(front/rear) |
| Front axle | 9T STR technology non-driving steering axle |
| Tandem | 16T STR technology double reduction, hub redactor driving axle |
| Clutch | D430 diaphragm type, single dry frictional disc, hydraulic boosting |
| Brake | Service brake: Double circuit pneumatic brake |
| | Parking brake: Spring-Power drum brake |
| | Engine brake: Engine exhaust brake (EVB) |
| Steering | ZF8118, driver sit at the Left hand side, RHD is optional |
| Tyre | 10+1 spare tyre with rim |
| | 12.00-20 bias tyre |
| Suspension system: Strengthen heavy duty Leaf spring type |
| | Front/Rear | 10/12 |
| Dump body: type of body : |
| Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body) |

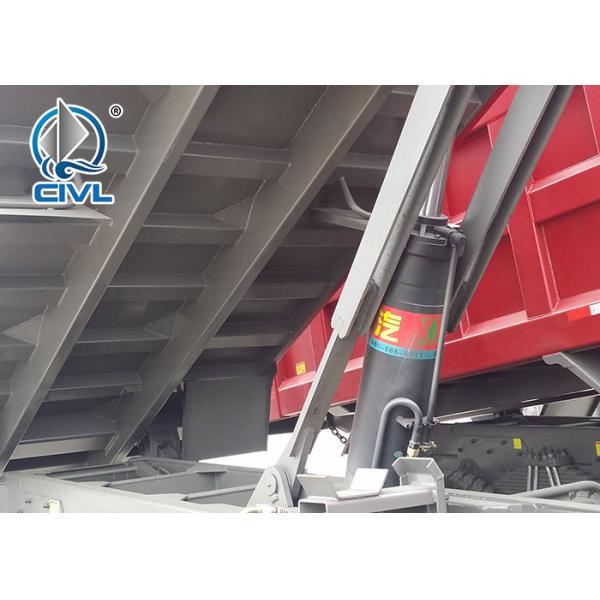

| Lifting type: HYVA front lifter type hydraulic system |
| Overall dimension(mm): 11868x2496x3250 (Length x width x height) |
| Wheelbase | 3800+1400mm |
| Track: | |
| | Front/Rear | 2036/1850 |
| | Approach/Departure angle | 28/30 |
| | Front /Rear overhang | 1525/1654 |
| | Max speed | 90km/h |
| Curb weight: | 12190kg |
